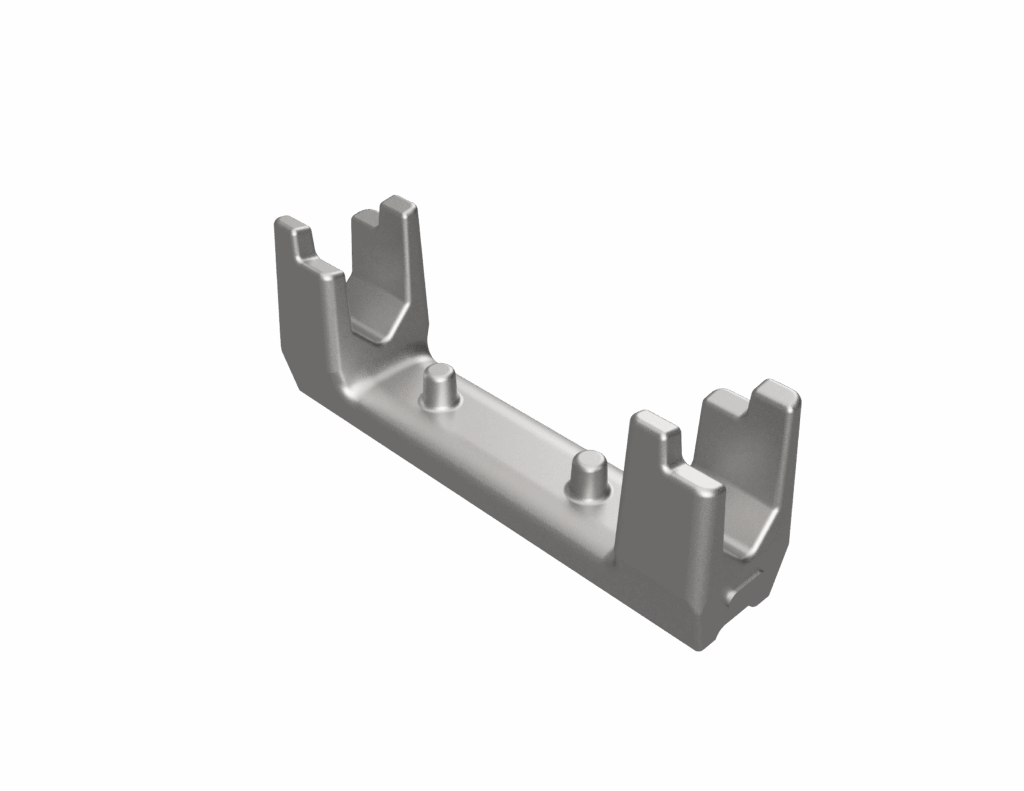

The KS clip is a robust centre-belt connection that wraps under the belt and grips the rod on both sides of the centre. This setup uses a two-by rod without any flattening in the middle—eliminating weak points at the centre.
Every 7th rod must be locked in place to ensure the centre belt stays correctly aligned. Note that KS clips are not compatible with N-type sprockets on the centre belt, as the clip runs underneath it.
A strong, non-intrusive solution—ideal where durability is key and full flattening is not required.
Available in diameters 9 / 10 / 11 / 12
