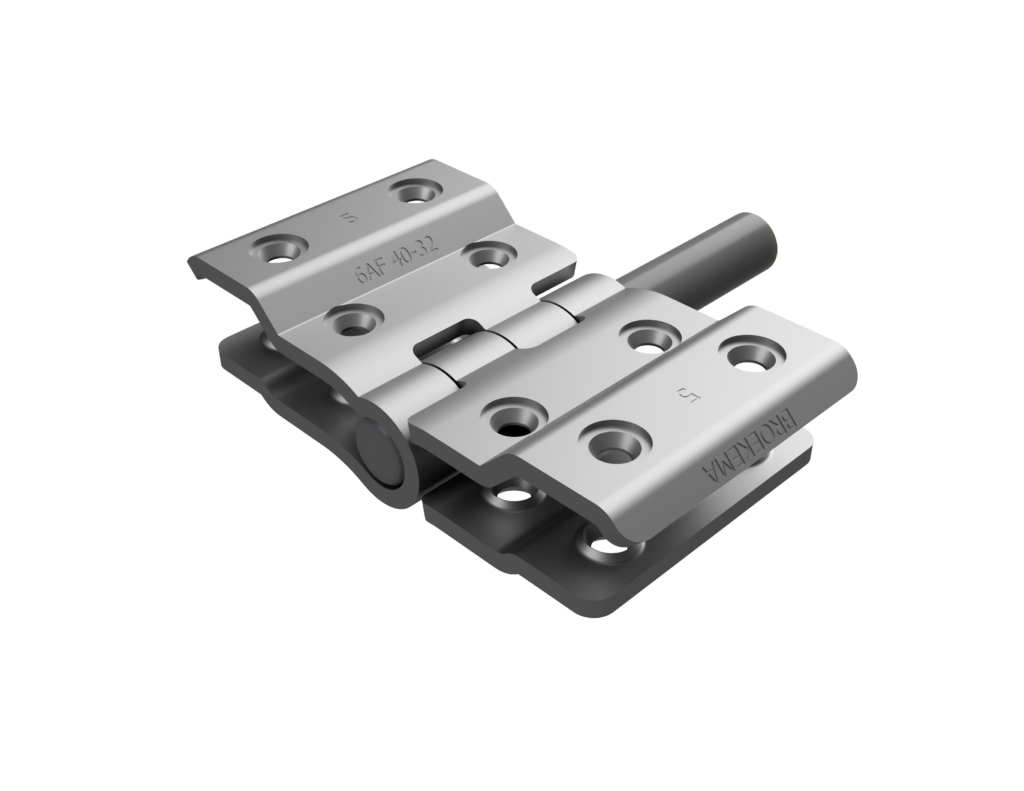

AF - Joining Clip

AF clips provide a robust, easy-to-mount connection for our conveyor and screening belts. Thanks to their sturdy design and identical halves (no separate male or female clip), they are versatile and stand up to intensive use.

5-AF clips fit 50 mm-wide traction belts (10 mm joining rods)
6-AF clips fit 60 mm-wide traction belts (11 mm joining rods)

Pitch	Male / Female	CTC	Holes	Rivet / Bolts (M)	Joining Rod
28	M + F	20	2	5,0	10
28	M + F	24	2	5,0	10
32	M + F	20	4	5,0	10
36	M + F	20	4	5,0	10
40	M + F	20	4	5,0	10
40	M + F	24	4	5,0	10
42	M + F	20	4	5,0	10
45	M + F	20	4	5,0	10
50	M + F	20	4	5,0	10

Pitch	Male / Female	CTC	Holes	Rivet / Bolts (M)	Joining Rod
28	M + F	30	2	5,0	11
28	M + F	32	2	5,0	11
32	M + F	32	2	5,0	11
36	M + F	30	4	5,0	11
36	M + F	32	4	5,0	11
40	M + F	30	4	5,0	11
40	M + F	32	4	5,0	11
42	M + F	32	4	5,0	11
45	M + F	32	4	5,0	11
50	M + F	32	4	5,0	11

The AF joining clip is a hard-wearing, user-friendly solution designed with two identical halves (no separate male or female part). By positioning the clip rods in line with the belt rather than riveting them on top, it ensures durability and reliable performance—particularly under heavy load.

Two identical halves for straightforward installation (no separate male/female components)

Clip rods align with the belt to reduce stress and improve longevity

Available in multiple pitches with either 2 or 4 rivet holes (5 mm)

Compatible with all belt types, though removing drive cams over three pitches may affect smaller sprockets

At Broekema, our joining clips are designed to combine durability, flexibility and serviceability — all essential factors in demanding agricultural and industrial environments. These mechanical connections make it possible to join webs securely and efficiently, even when endless vulcanization is not an option.

We offer a broad range of clip types, each optimized for specific needs. From simple and robust AF clips with identical halves, to high-performance solutions like BS or BSV clips with replaceable bushings, all our designs aim to extend belt life and minimize downtime. In situations where extra flexibility is needed, a Double Pivot setup can be added to many clip types to help the belt move more smoothly over smaller rollers.

Our clips are easy to install and maintain, and many can be serviced on-site without removing the entire web. Whether your priority is quick assembly, resistance to wear, or optimal bending performance — there’s always a Broekema joining clip that fits your application.

Need advice on which joining solution suits your system best? Our team is ready to help.
